The Verve Tech Truck
Full broadcast capability, wherever the production takes you.
Our new ‘Tech Truck’ embodies the core principles of Verve: bespoke by design, flexible in execution, and built entirely around our clients’ needs. Conceived as a Swiss Army knife of capability, it’s a compact but powerful technical hub that can adapt seamlessly to a huge range of productions.
From live and remote workflows to on-location control, monitoring, and connectivity, the truck is engineered to scale up or strip back as required—bringing the right tools, in the right configuration, every time. Thoughtfully designed, highly modular, and relentlessly practical, it’s Verve’s approach to technical delivery on wheels
Van Specifications
Technical & Connectivity Specifications
Full RCP colour control for any modern cinema camera OB Vehicle with connectivity via SMPTE, copper and Wireless systems to
Model
The Verve OB Van is a MAN TGE 3.140 a 3.5-tonne panel van adapted for OB use. It has the ability to carry out full productions whilst still being able to park in regular spaces and work off lower power than a larger OB Vehicle allowing it to be extremely versatile.

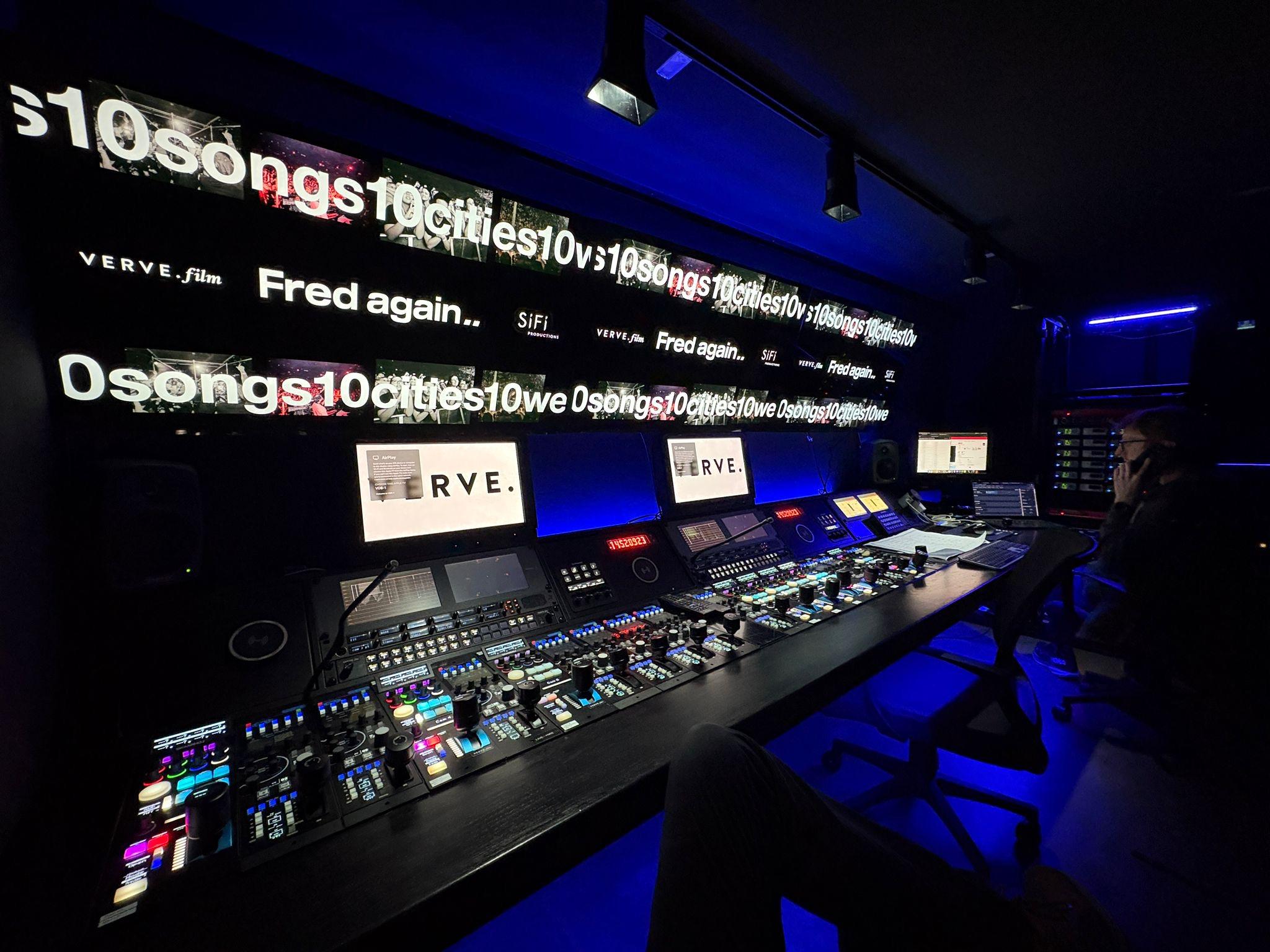

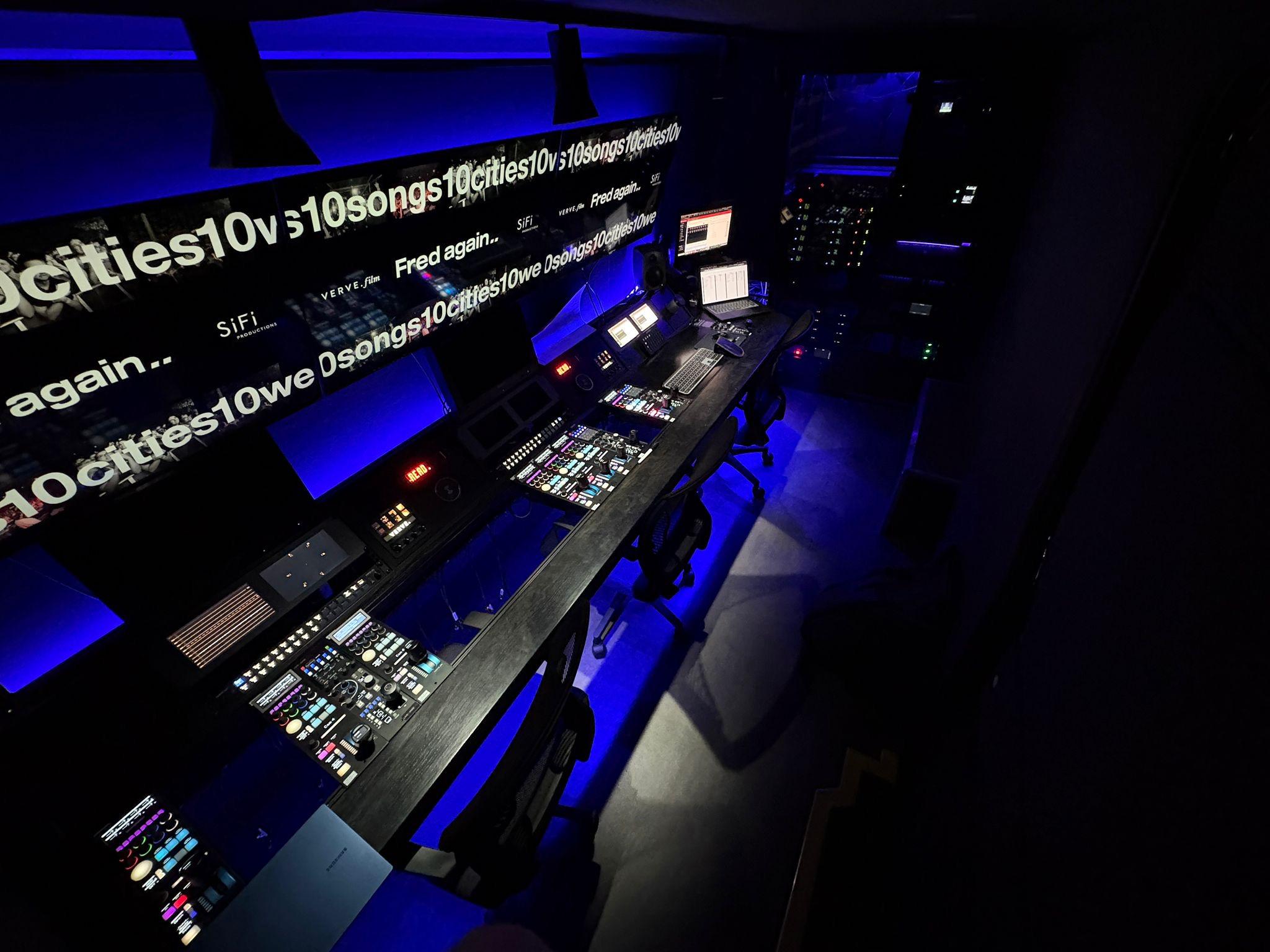

Production Area
Main Production Desk: 1 row, 3 seats comfortable, 4 tight fit.

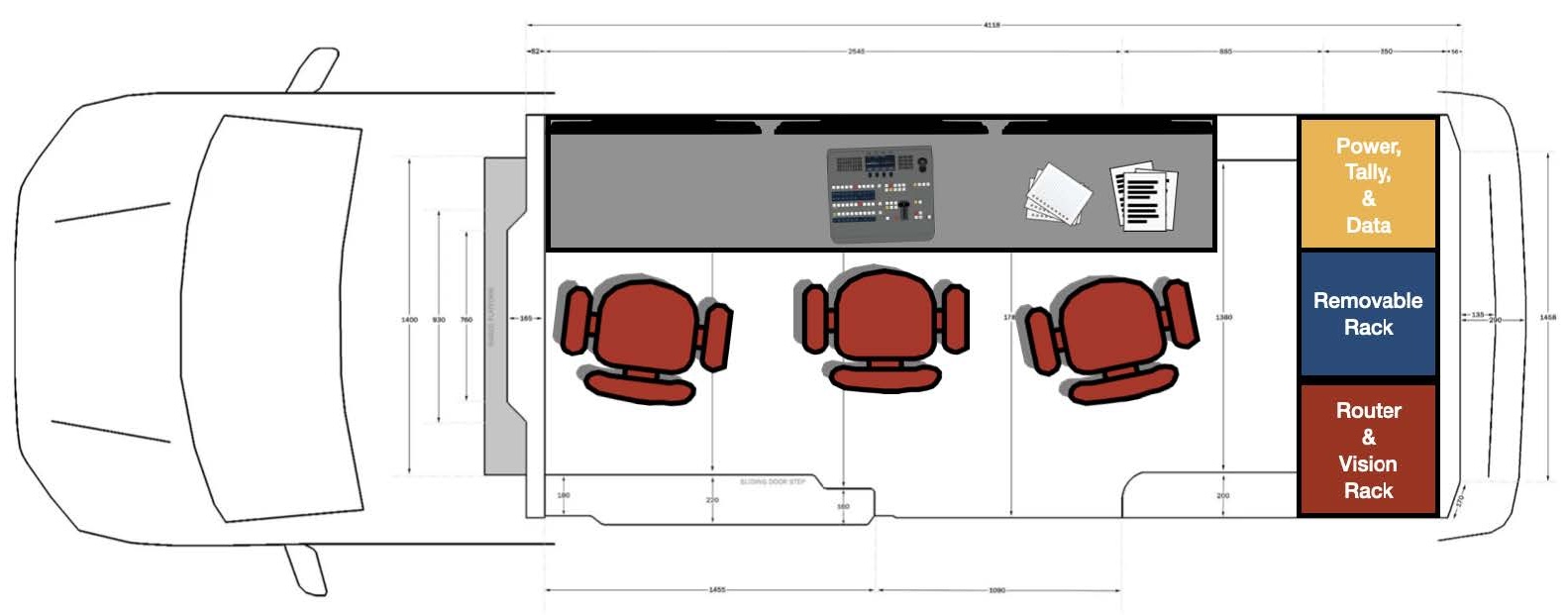

Vehicle Set Ups
TECH SUPPORT
Up to 28 RCP’s control with a technical position for central data control to all devices.
VISION MIXER
Vision Mixer Control Panel at the centre with space for the director and the producer or other roles within the other seats.
VIEWING GALLERY
3 people with multiviewers and optional switching monitors for each position.
Tech Spec.
ROUTING
Router base BMD 12G 120×120 Video Hub
BMD Constellation Vision Mixer; 80 Inputs / 40 Outputs
RECORDING
HD, UHD and 4K record capabilities at ProRes, DNxHD and H.264 with Proxy for any of the above.

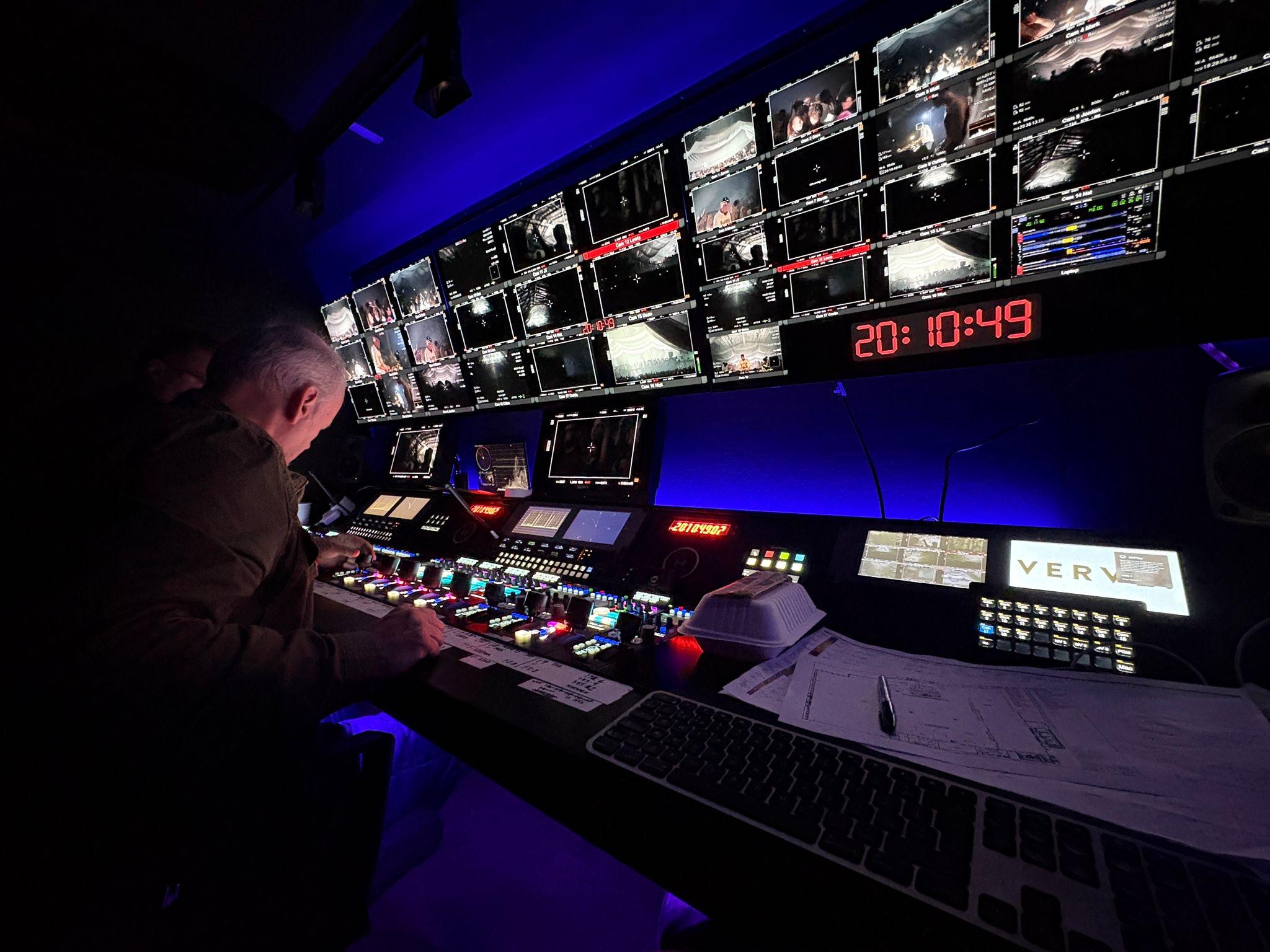

SCREENS & MONITORING
Integrated colour accurate monitoring with larger multiviews:
– 3 x 42” multiview TVs.
– 5 x 17” Colour accurate monitors.
SOUND
Genleks Audio in-built for Line audio.
16 Channels of Audio as standard, more on request as well as Reidel comms panels at every desk.
MODEL
MAN TGE 3.140 Van
OTHER
UPS emergency battery.
Air-conditioning unit.
Lighting control at every position.
